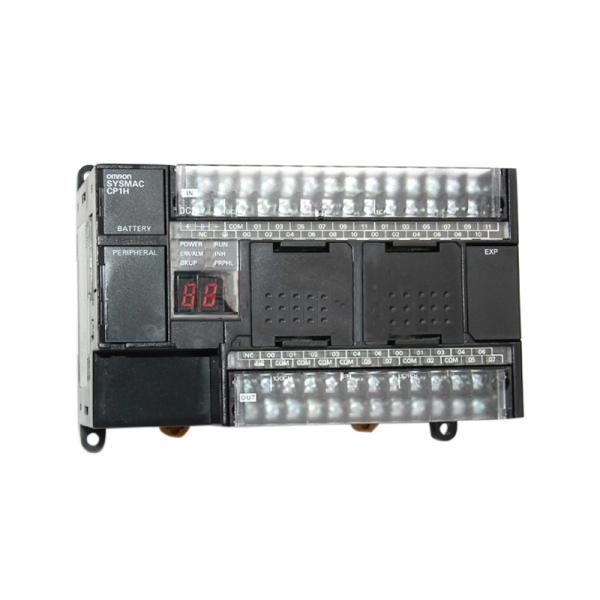

OMRON PLC CP1H Smart CPU CP1H-X40DT-D Ethernet contact

Model Number : OMRON PLC CP1H Smart CPU CP1H-X40DT-D Ethernet contact

Certification : CE

Place of Origin : Europe

MOQ : 1

Payment Terms : Western Union,T/T

Delivery Time : 7 days

Packaging Details : Carton

Price : USD28-68889

Contact Now

OMRON PLC CP1H Smart CPU CP1H-X40DT-D Ethernet contact



Introduction:
The CP series can minimize equipment costs to the greatest extent.
• For example, the simple positioning required for conveyor belt control, assembly devices, packaging machines, etc., the measurement and length measurement of high - speed counters, and the serial communication control of frequency conversion control are all controlled by the CPU alone, which can minimize equipment costs.
Simple Multi - Servo Control
• The CP series includes the CP1E - N type which is low - cost and equipped with 2 - axis pulse output, and the CP1H type equipped with 4 - axis pulse output. In addition, the CP1L, including the CP1L - EM1 type with a standard Ethernet port, can perform 2 - axis pulse output. You can select the corresponding CPU according to the number of servo motors required by the device.
• Simple Frequency Conversion Control
Using the built - in Modbus - RTU communication master station function, frequency conversion control can be easily realized. For example, when you want to connect an inverter through RS - 485 serial communication and directly set the frequency of the frequency conversion control device and the speed of the conveyor belt from the programmable controller, there is no need to care about the protocol. You only need to send commands to control the inverter. In addition, after combining the high - speed counter function, it can also be used for applications such as controlling the label feeding amount.

Specification:
No. Item Symbol Specification
① Type X Basic type
XA With built - in analog input and output terminal block type
Y With dedicated terminal type for pulse input and output
② Number of built - in general input and output points 40 40 points
20 20 points
R Relay output
③ Output category T Transistor output (sink type)
TI Transistor output (source type)
④ Power supply type A AC power supply
D DC power supply
